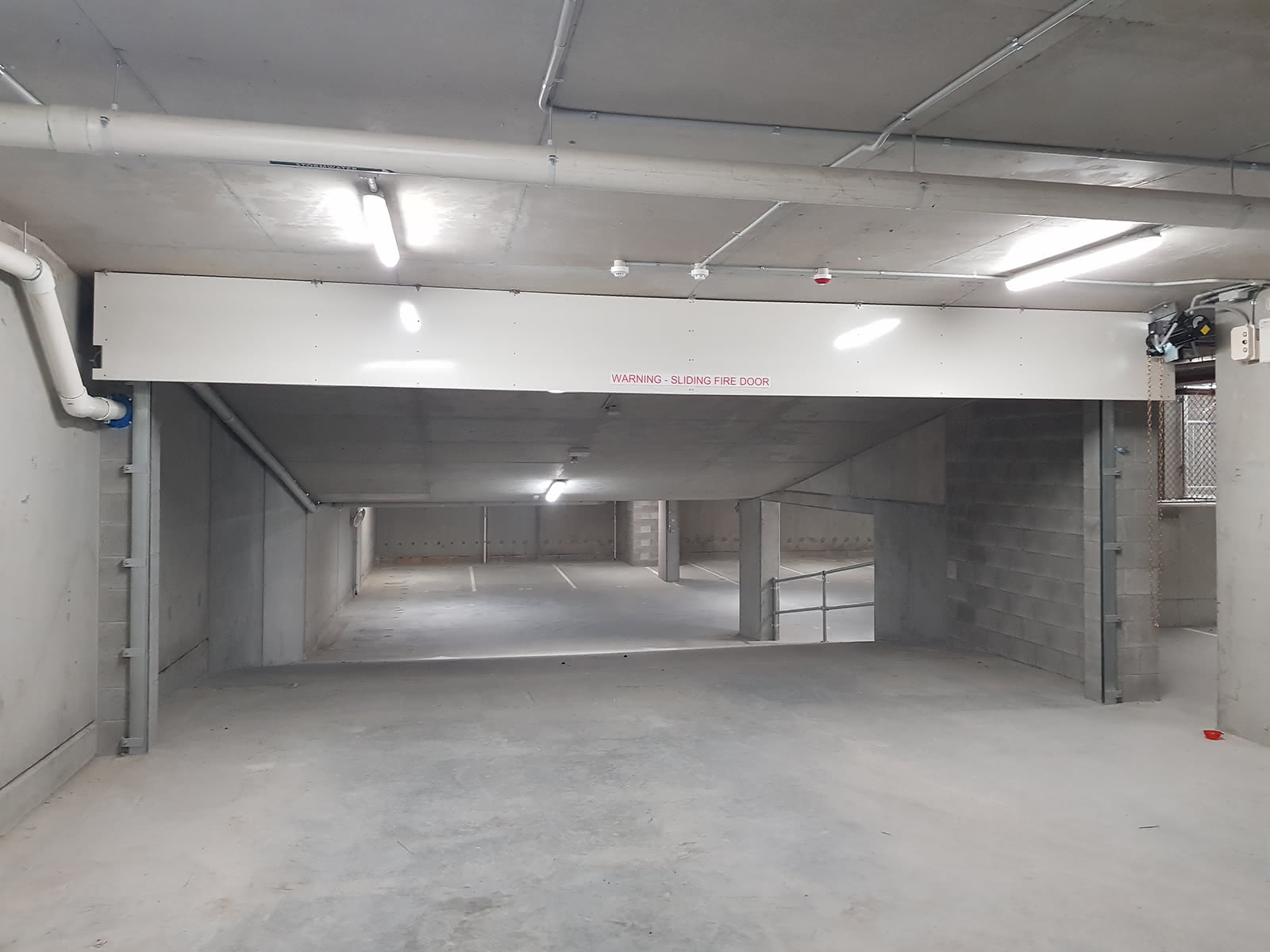

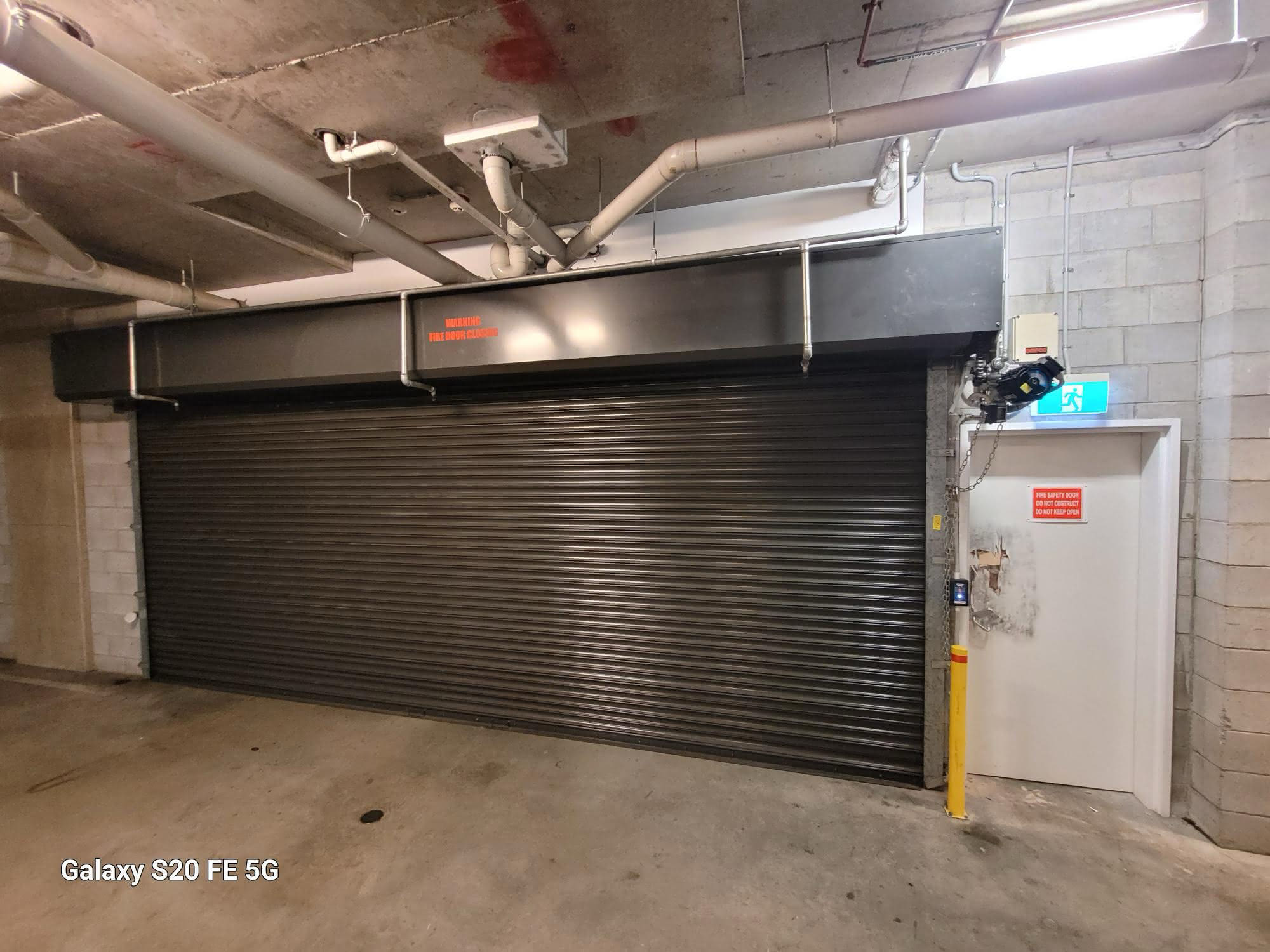

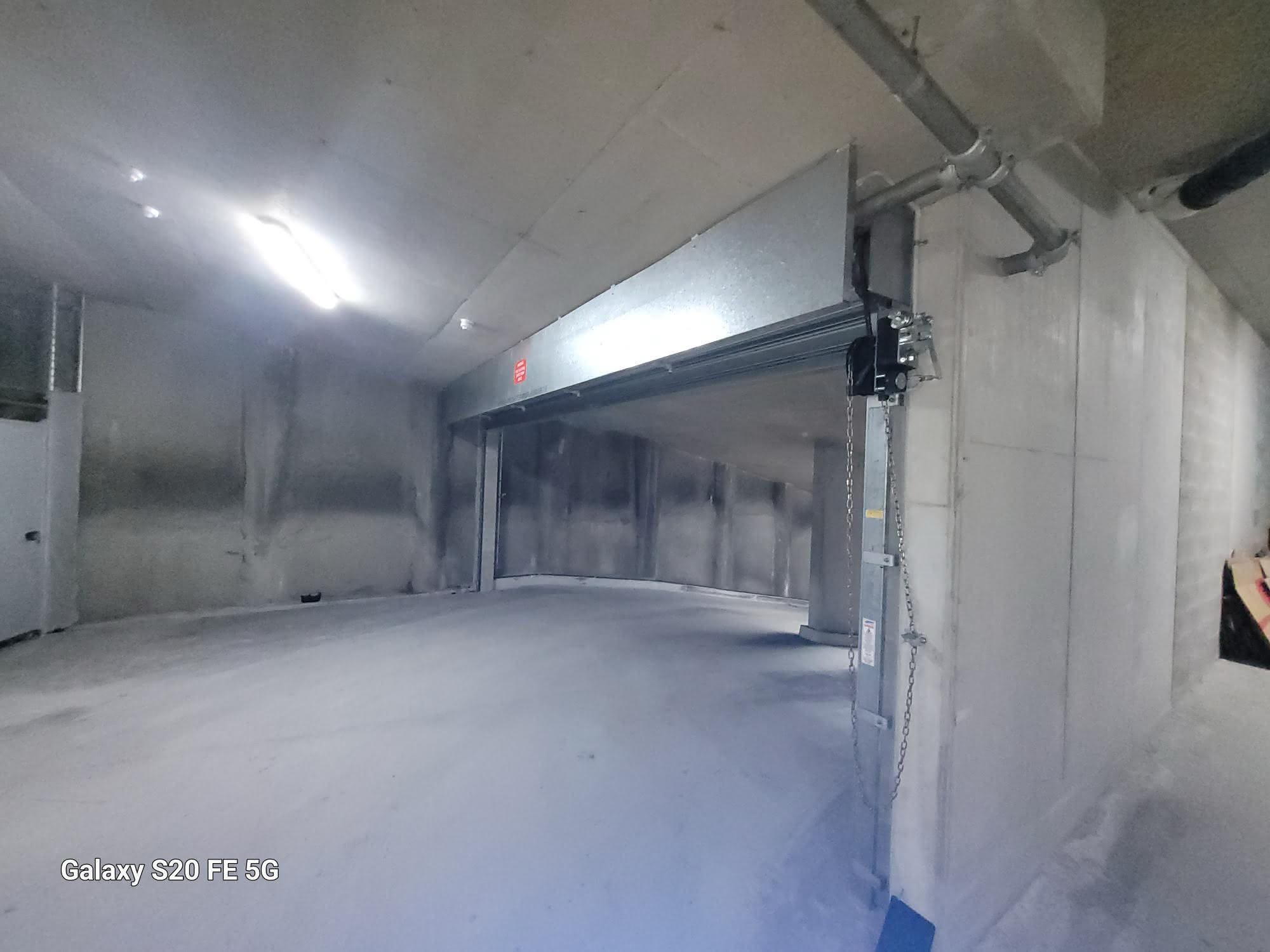

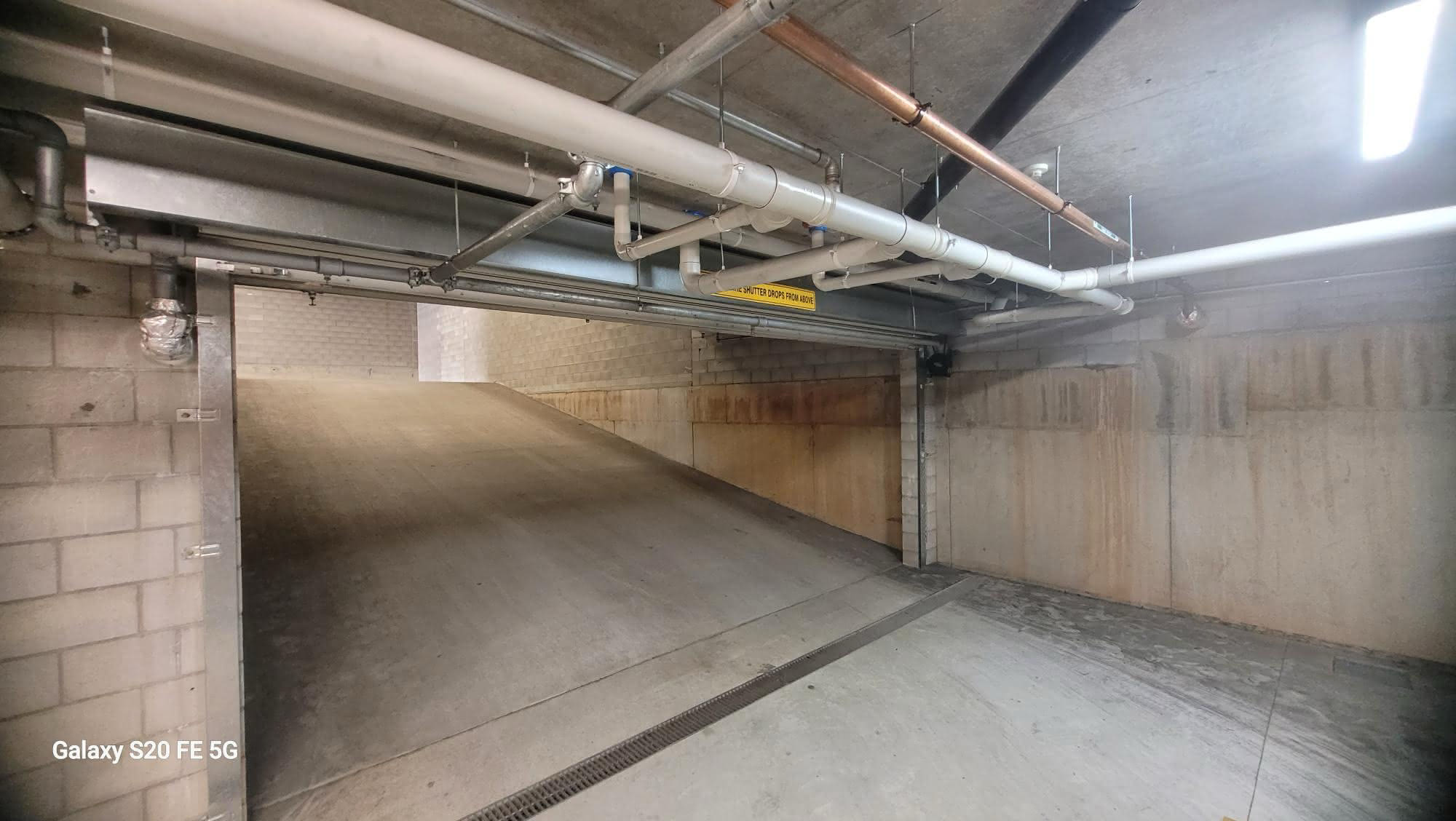

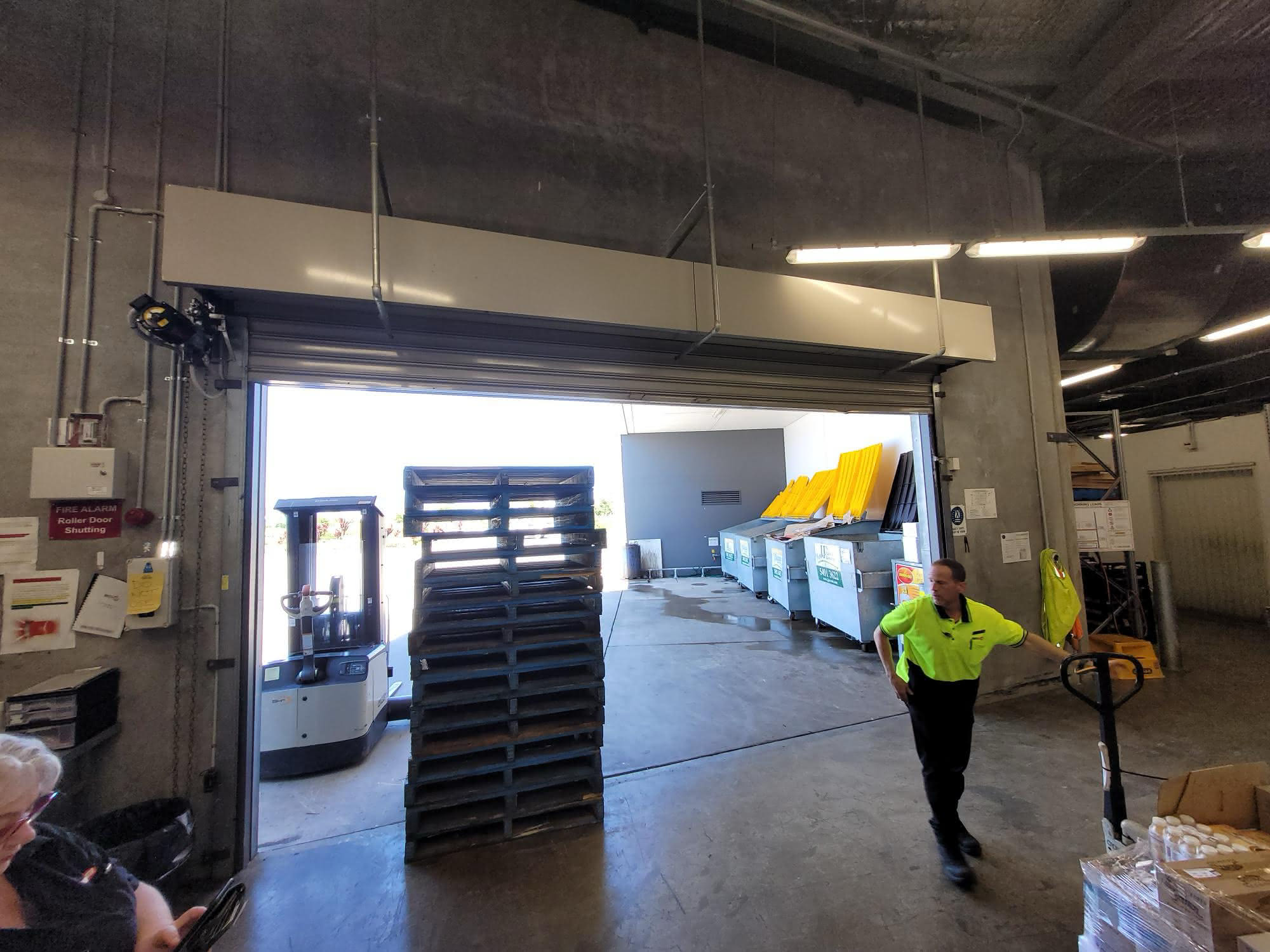

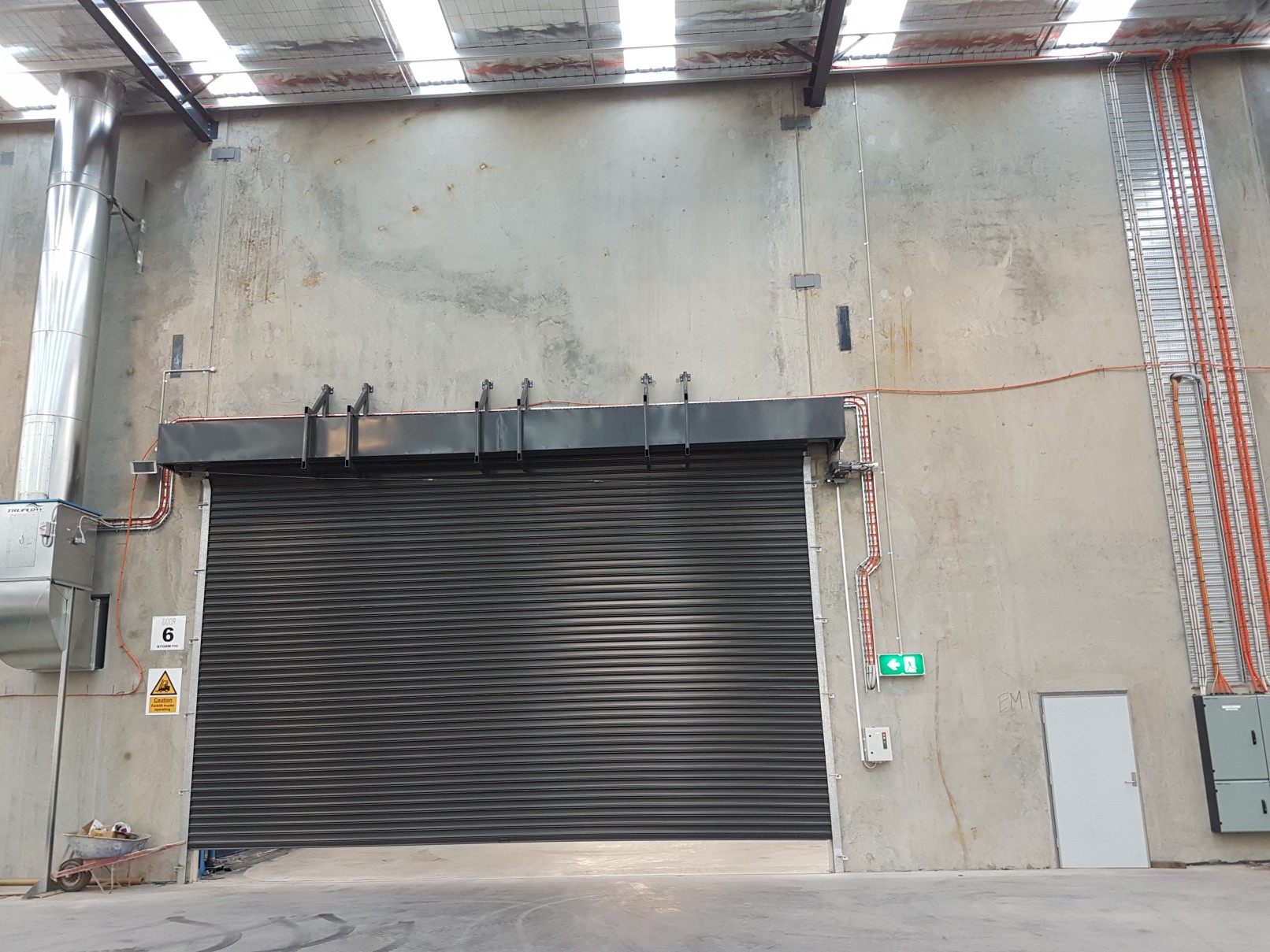

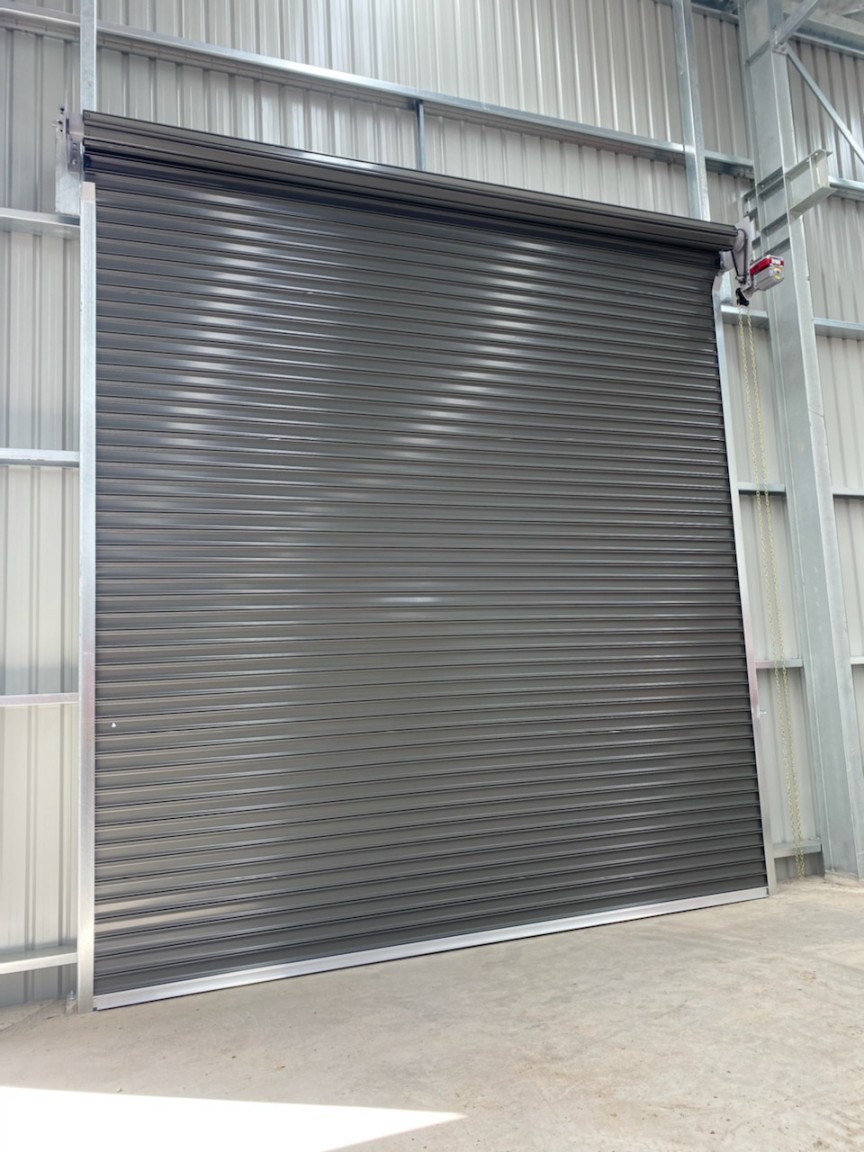

F75/F100 Fire Rated Shutter
Certified fire-rated protection up to 120 minutes
Built for compliance and reliability, the Sprint F75 and F100 Fire Rated Steel Shutters are tested and certified to provide up to 120 minutes fire integrity. Manufactured in-house from Australian-made Bluescope galvanised steel, these shutters deliver automatic closing in the event of fire, meeting stringent Australian Standards for safety and performance.
Key Features
Secure
Standards Compliant
Heavy Duty
Fire Rated
Sensors Safety
Specifications Summary
| Feature | F75 Fire Rated Shutter | F100 Fire Rated Shutter |
|---|---|---|
| Slat Size | Max Width: 9,000 mm | Max Width: 9,000 mm |
| Slat Thickness | 1.0mm | 1.0mm |
| Fire Rating | -/120/- | -/120/- |
| Finish | Galvanised or Dulux powder coat | Galvanised or Dulux powder coat |
| Curtain | Bluescope Z275 galvanised steel | Bluescope Z275 galvanised steel |
| Bottom Rail | 2 × 50 × 5 steel angles | 2 × 50 × 5 steel angles |
| Drum | C350 line pipe, cold-drawn 1020 axles, sealed roller bearings, sprung doors | Same as F75 |
| Operation | Manual/motorised; Grifco hoist with fusible link or fire motor with auto-close | Manual/motorised; Grifco hoist or fire motor with fusible link + magnet release |
| Weight (approx.) | 14.1kg/m² (75/1.0mm), excl. drum/motor | 15.2kg/m² (100/1.0mm), excl. drum/motor |
Additional notes
- Fire Ratings: Expressed as –/–/– (structural adequacy / fire integrity / insulation). Sprint F100 shutters are certified for fire integrity of 120 or 240 minutes. No insulation value is provided; consult a fire engineer for drenching solutions if insulation is required.

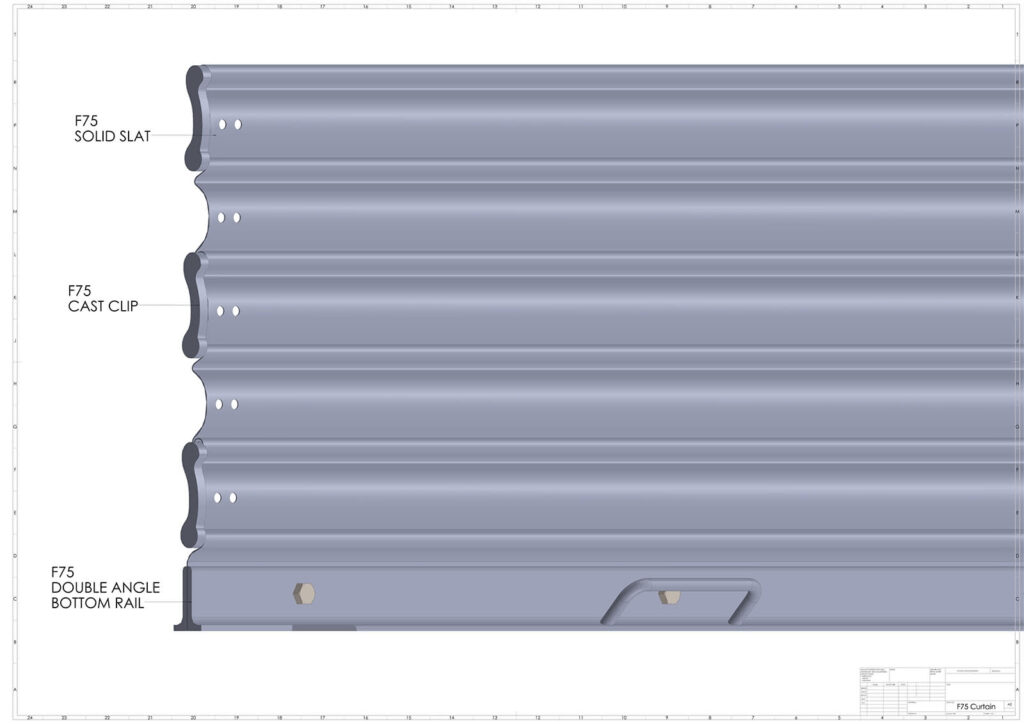

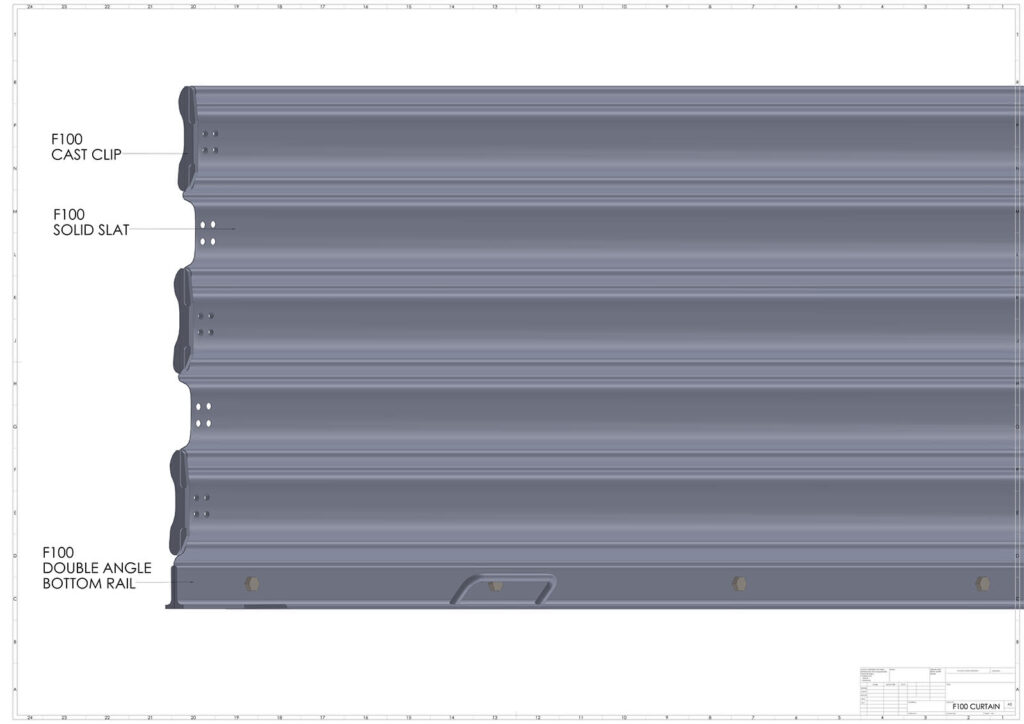

- Curtain: Roll formed from Bluescope Z275 galvanised steel, BMT 0.95 = 100/1.0mm profile.
- Bottom Rail: Two 50 x 50 x 5 steel angles mounted back to back. No rubber seal included.
- Drum: C350 line pipe with cold-drawn 1020 solid bar axles on sealed roller bearings. Includes Australian-made helical springs for sprung doors.

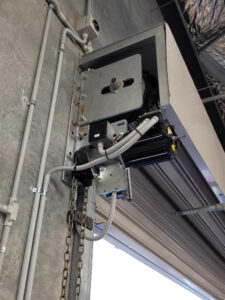

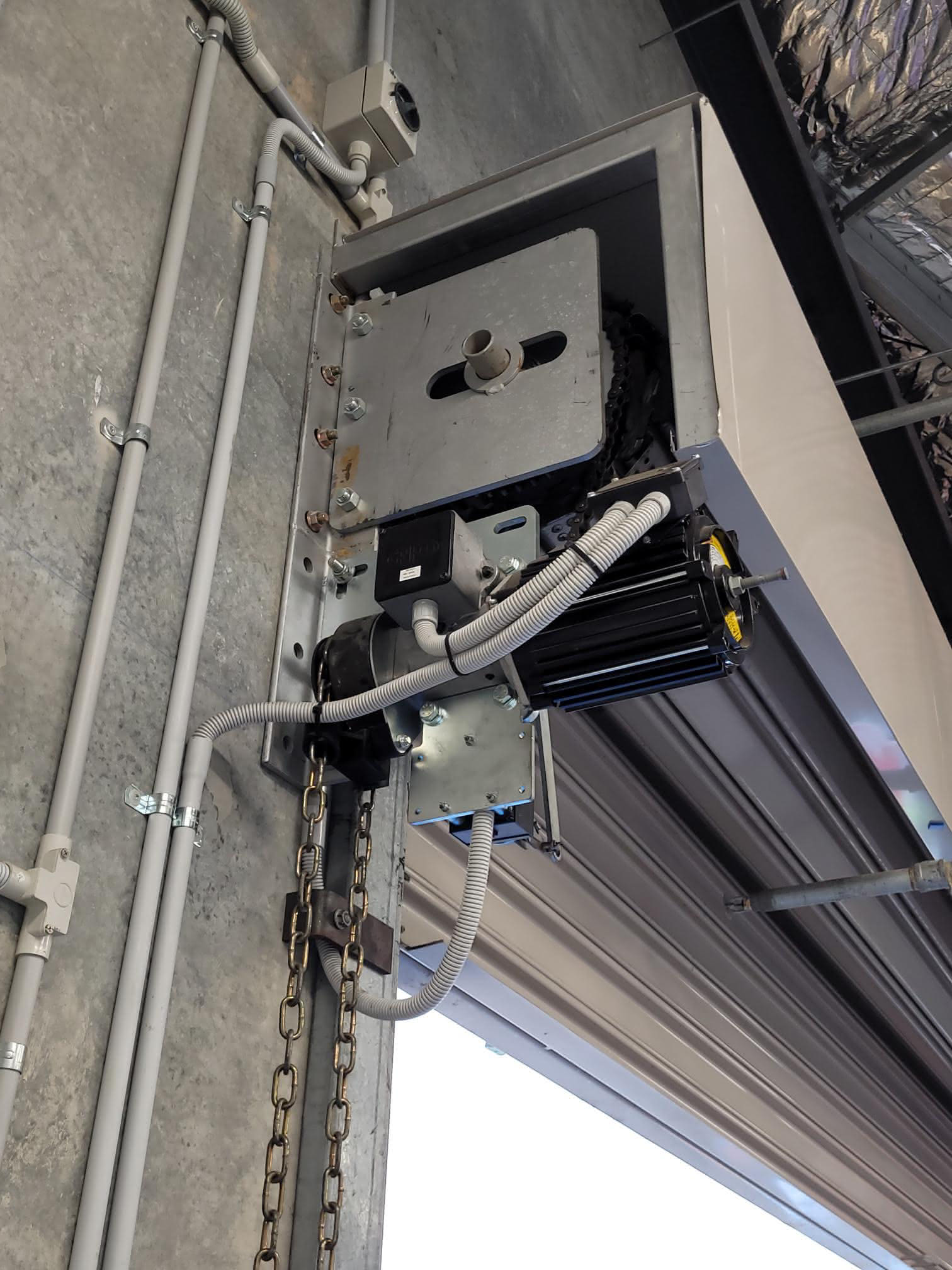

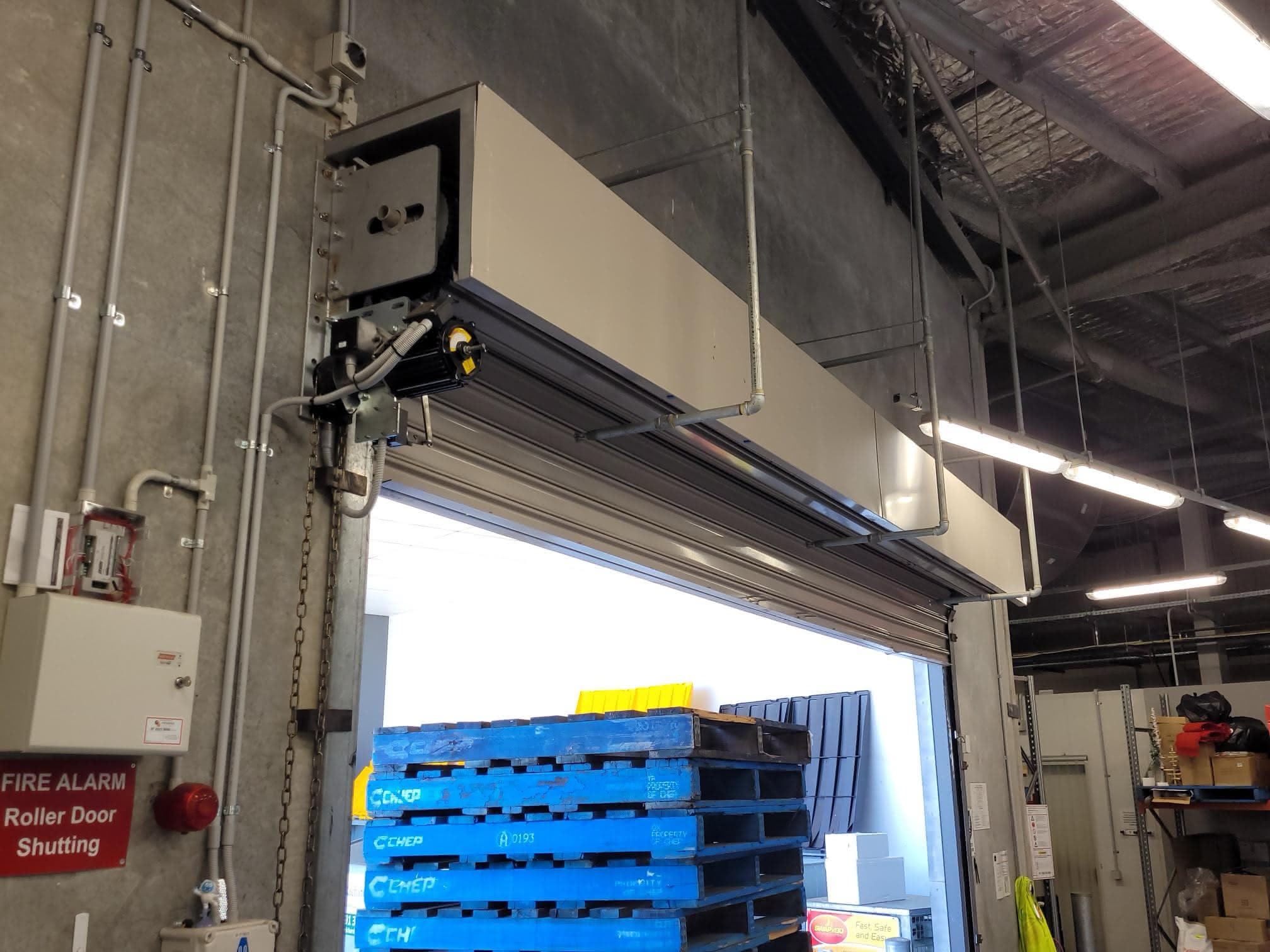

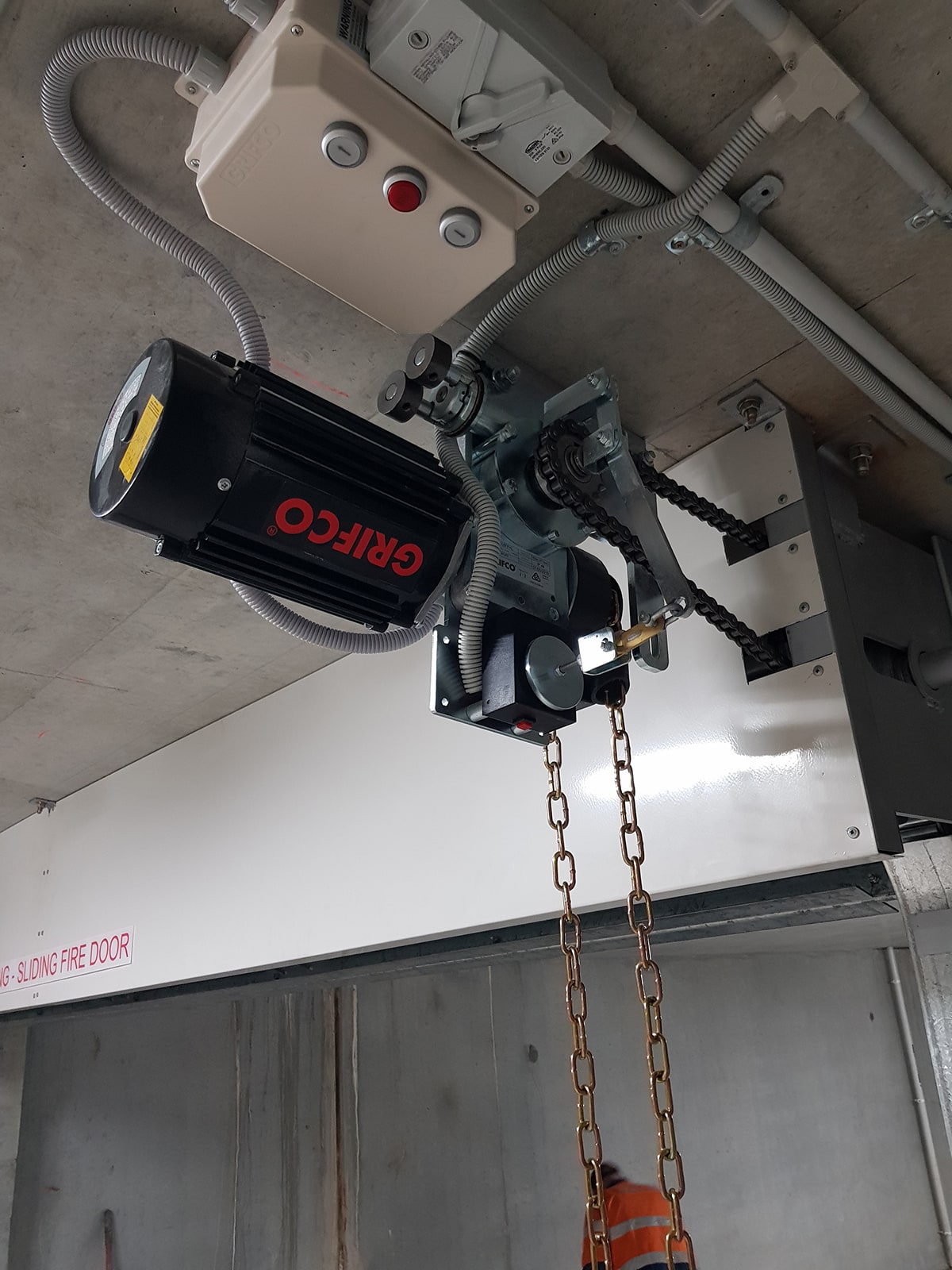

- Operation: Options include Grifco fire shutter manual hoist or fire shutter motors with fusible link and magnet release. Doors automatically close in a fire event at a controlled descent speed. Available in 240V and 3-phase.
- Finishes: Supplied in galvanised (silver) or Dulux powder coat finishes. Coating applied to both sides of slats as standard for superior protection and colour consistency.
- Weight: Approx. 15.2kg/m² (100/1.0mm), not including drum or motor.
